创建资源服务器模块

概述

在 为什么需要 oAuth2 和 RBAC 基于角色的权限控制 章节，我们介绍过资源的概念，简单点说就是需要被访问的业务数据或是静态资源文件都可以被称作资源。

为了让大家更好的理解资源服务器的概念，我们单独创建一个名为 spring-security-oauth2-resource 资源服务器的项目，该项目的主要目的就是对数据表的 CRUD 操作，而这些操作就是对资源的操作了。

操作流程

• 初始化资源服务器数据库
• POM 所需依赖同认证服务器
• 配置资源服务器
• 配置资源(Controller)

初始化资源服务器数据库

    CREATE TABLE `tb_content` (
      `id` bigint(20) NOT NULL AUTO_INCREMENT,
      `category_id` bigint(20) NOT NULL COMMENT '内容类目ID',
      `title` varchar(200) DEFAULT NULL COMMENT '内容标题',
      `sub_title` varchar(100) DEFAULT NULL COMMENT '子标题',
      `title_desc` varchar(500) DEFAULT NULL COMMENT '标题描述',
      `url` varchar(500) DEFAULT NULL COMMENT '链接',
      `pic` varchar(300) DEFAULT NULL COMMENT '图片绝对路径',
      `pic2` varchar(300) DEFAULT NULL COMMENT '图片2',
      `content` text COMMENT '内容',
      `created` datetime DEFAULT NULL,
      `updated` datetime DEFAULT NULL,
      PRIMARY KEY (`id`),
      KEY `category_id` (`category_id`),
      KEY `updated` (`updated`)
    ) ENGINE=InnoDB AUTO_INCREMENT=42 DEFAULT CHARSET=utf8;
    insert  into `tb_content`(`id`,`category_id`,`title`,`sub_title`,`title_desc`,`url`,`pic`,`pic2`,`content`,`created`,`updated`) values
    (28,89,'标题','子标题','标题说明','http://www.jd.com',NULL,NULL,NULL,'2019-04-07 00:56:09','2019-04-07 00:56:11'),
    (29,89,'ad2','ad2','ad2','http://www.baidu.com',NULL,NULL,NULL,'2019-04-07 00:56:13','2019-04-07 00:56:15'),
    (30,89,'ad3','ad3','ad3','http://www.sina.com.cn',NULL,NULL,NULL,'2019-04-07 00:56:17','2019-04-07 00:56:19'),
    (31,89,'ad4','ad4','ad4','http://www.cmcc.com',NULL,NULL,NULL,'2019-04-07 00:56:22','2019-04-07 00:56:25');

    CREATE TABLE `tb_content_category` (
      `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '类目ID',
      `parent_id` bigint(20) DEFAULT NULL COMMENT '父类目ID=0时，代表的是一级的类目',
      `name` varchar(50) DEFAULT NULL COMMENT '分类名称',
      `status` int(1) DEFAULT '1' COMMENT '状态。可选值:1(正常),2(删除)',
      `sort_order` int(4) DEFAULT NULL COMMENT '排列序号，表示同级类目的展现次序，如数值相等则按名称次序排列。取值范围:大于零的整数',
      `is_parent` tinyint(1) DEFAULT '1' COMMENT '该类目是否为父类目，1为true，0为false',
      `created` datetime DEFAULT NULL COMMENT '创建时间',
      `updated` datetime DEFAULT NULL COMMENT '创建时间',
      PRIMARY KEY (`id`),
      KEY `parent_id` (`parent_id`,`status`) USING BTREE,
      KEY `sort_order` (`sort_order`)
    ) ENGINE=InnoDB AUTO_INCREMENT=98 DEFAULT CHARSET=utf8 COMMENT='内容分类';
    insert  into `tb_content_category`(`id`,`parent_id`,`name`,`status`,`sort_order`,`is_parent`,`created`,`updated`) values
    (30,0,'LeeShop',1,1,1,'2015-04-03 16:51:38','2015-04-03 16:51:40'),
    (86,30,'首页',1,1,1,'2015-06-07 15:36:07','2015-06-07 15:36:07'),
    (87,30,'列表页面',1,1,1,'2015-06-07 15:36:16','2015-06-07 15:36:16'),
    (88,30,'详细页面',1,1,1,'2015-06-07 15:36:27','2015-06-07 15:36:27'),
    (89,86,'大广告',1,1,0,'2015-06-07 15:36:38','2015-06-07 15:36:38'),
    (90,86,'小广告',1,1,0,'2015-06-07 15:36:45','2015-06-07 15:36:45'),
    (91,86,'商城快报',1,1,0,'2015-06-07 15:36:55','2015-06-07 15:36:55'),
    (92,87,'边栏广告',1,1,0,'2015-06-07 15:37:07','2015-06-07 15:37:07'),
    (93,87,'页头广告',1,1,0,'2015-06-07 15:37:17','2015-06-07 15:37:17'),
    (94,87,'页脚广告',1,1,0,'2015-06-07 15:37:31','2015-06-07 15:37:31'),
    (95,88,'边栏广告',1,1,0,'2015-06-07 15:37:56','2015-06-07 15:37:56'),
    (96,86,'中广告',1,1,1,'2015-07-25 18:58:52','2015-07-25 18:58:52'),
    (97,96,'中广告1',1,1,0,'2015-07-25 18:59:43','2015-07-25 18:59:43');
```

## POM

```
    <?xml version="1.0" encoding="UTF-8"?>
    <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
        <modelVersion>4.0.0</modelVersion>

        <parent>
            <groupId>com.cmcc</groupId>
            <artifactId>spring-security-oauth2</artifactId>
            <version>1.0.0-SNAPSHOT</version>
        </parent>

        <artifactId>spring-security-oauth2-resource</artifactId>
        <url>http://www.cmcc.com</url>

        <licenses>
            <license>
                <name>Apache 2.0</name>
                <url>https://www.apache.org/licenses/LICENSE-2.0.txt</url>
            </license>
        </licenses>

        <developers>
            <developer>
                <id>liwemin</id>
                <name>cmcc Lee</name>
                <email>136913633167@163.com</email>
            </developer>
        </developers>

        <dependencies>
            <!-- Spring Boot -->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-test</artifactId>
            </dependency>

            <!-- Spring Security -->
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-starter-oauth2</artifactId>
            </dependency>

            <!-- 数据库 -->
            <dependency>
                <groupId>com.zaxxer</groupId>
                <artifactId>HikariCP</artifactId>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-jdbc</artifactId>
                <exclusions>
                    <!-- 排除 tomcat-jdbc 以使用 HikariCP -->
                    <exclusion>
                        <groupId>org.apache.tomcat</groupId>
                        <artifactId>tomcat-jdbc</artifactId>
                    </exclusion>
                </exclusions>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
            </dependency>
            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper-spring-boot-starter</artifactId>
            </dependency>

            <!-- Lombok -->
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
            </dependency>
        </dependencies>

        <build>
            <plugins>
                <plugin>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-maven-plugin</artifactId>
                    <configuration>
                        <mainClass>com.cmcc.oauth2.OAuth2ResourceApplication</mainClass>
                    </configuration>
                </plugin>
            </plugins>
        </build>

    </project>
```

## 关键步骤

由于代码较多，可以参考我 [**GitHub**](https://github.com/topsale/spring-boot-samples/tree/master/spring-security-oauth2) 上的源码，下面仅列出关键步骤及代码

### 配置资源服务器

创建一个类继承 `ResourceServerConfigurerAdapter` 并添加相关注解：

*   `@Configuration`
*   `@EnableResourceServer`：资源服务器
*   `@EnableGlobalMethodSecurity(prePostEnabled = true, securedEnabled = true, jsr250Enabled = true)`：全局方法拦截

```
    package com.cmcc.oauth2.resource.config;

    import org.springframework.context.annotation.Configuration;
    import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
    import org.springframework.security.config.annotation.web.builders.HttpSecurity;
    import org.springframework.security.config.http.SessionCreationPolicy;
    import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
    import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;

    @Configuration
    @EnableResourceServer
    @EnableGlobalMethodSecurity(prePostEnabled = true, securedEnabled = true, jsr250Enabled = true)
    public class ResourceServerConfiguration extends ResourceServerConfigurerAdapter {

        @Override
        public void configure(HttpSecurity http) throws Exception {
            http
                    .exceptionHandling()
                    .and()
                    .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                    .and()
                    .authorizeRequests()
                    // 以下为配置所需保护的资源路径及权限，需要与认证服务器配置的授权部分对应
                    .antMatchers("/").hasAuthority("SystemContent")
                    .antMatchers("/view/**").hasAuthority("SystemContentView")
                    .antMatchers("/insert/**").hasAuthority("SystemContentInsert")
                    .antMatchers("/update/**").hasAuthority("SystemContentUpdate")
                    .antMatchers("/delete/**").hasAuthority("SystemContentDelete");
        }

    }
```

### Application

```
    package com.cmcc.oauth2;

    import org.springframework.boot.SpringApplication;
    import org.springframework.boot.autoconfigure.SpringBootApplication;
    import tk.mybatis.spring.annotation.MapperScan;

    @SpringBootApplication
    @MapperScan(basePackages = "com.cmcc.oauth2.resource.mapper")
    public class OAuth2ResourceApplication {

        public static void main(String[] args) {
            SpringApplication.run(OAuth2ResourceApplication.class, args);
        }
    }
```

### application.yml

```
    spring:
      application:
        name: oauth2-resource
      datasource:
        type: com.zaxxer.hikari.HikariDataSource
        driver-class-name: com.mysql.cj.jdbc.Driver
        url: jdbc:mysql://192.168.141.128:3307/oauth2_resource?useUnicode=true&characterEncoding=utf-8&useSSL=false
        username: root
        password: 123456
        hikari:
          minimum-idle: 5
          idle-timeout: 600000
          maximum-pool-size: 10
          auto-commit: true
          pool-name: MyHikariCP
          max-lifetime: 1800000
          connection-timeout: 30000
          connection-test-query: SELECT 1

    security:
      oauth2:
        client:
          client-id: client
          client-secret: secret
          access-token-uri: http://localhost:8080/oauth/token
          user-authorization-uri: http://localhost:8080/oauth/authorize
        resource:
          token-info-uri: http://localhost:8080/oauth/check_token

    server:
      port: 8081
      servlet:
        context-path: /contents

    mybatis:
      type-aliases-package: com.cmcc.oauth2.resource.domain
      mapper-locations: classpath:mapper/*.xml

    logging:
      level:
        root: INFO
        org.springframework.web: INFO
        org.springframework.security: INFO
        org.springframework.security.oauth2: INFO
```

## 访问资源

### 访问获取授权码

打开浏览器，输入地址：

```
    http://localhost:8080/oauth/authorize?client_id=client&response_type=code
```

第一次访问会跳转到登录页面

![](/img/20190401195014.png)

验证成功后会询问用户是否授权客户端

![](/img/20190401195129.png)

选择授权后会跳转到我的博客，浏览器地址上还会包含一个授权码（`code=1JuO6V`），浏览器地址栏会显示如下地址：

```
    http://www.cmcc.com/?code=1JuO6V
```

有了这个授权码就可以获取访问令牌了

### 通过授权码向服务器申请令牌

通过 CURL 或是 Postman 请求

```
    curl -X POST -H "Content-Type: application/x-www-form-urlencoded" -d 'grant_type=authorization_code&code=1JuO6V' "http://client:secret@localhost:8080/oauth/token"
```

![](/img/20190402232952.png)

得到响应结果如下：

```
    {
        "access_token": "016d8d4a-dd6e-4493-b590-5f072923c413",
        "token_type": "bearer",
        "expires_in": 43199,
        "scope": "app"
    }
```

### 携带令牌访问资源服务器

此处以获取全部资源为例，其它请求方式一样，可以参考我源码中的单元测试代码。可以使用以下方式请求：

*   使用 Headers 方式：需要在请求头增加 `Authorization: Bearer yourAccessToken`
*   直接请求带参数方式：`http://localhost:8081/contents?access_token=yourAccessToken`

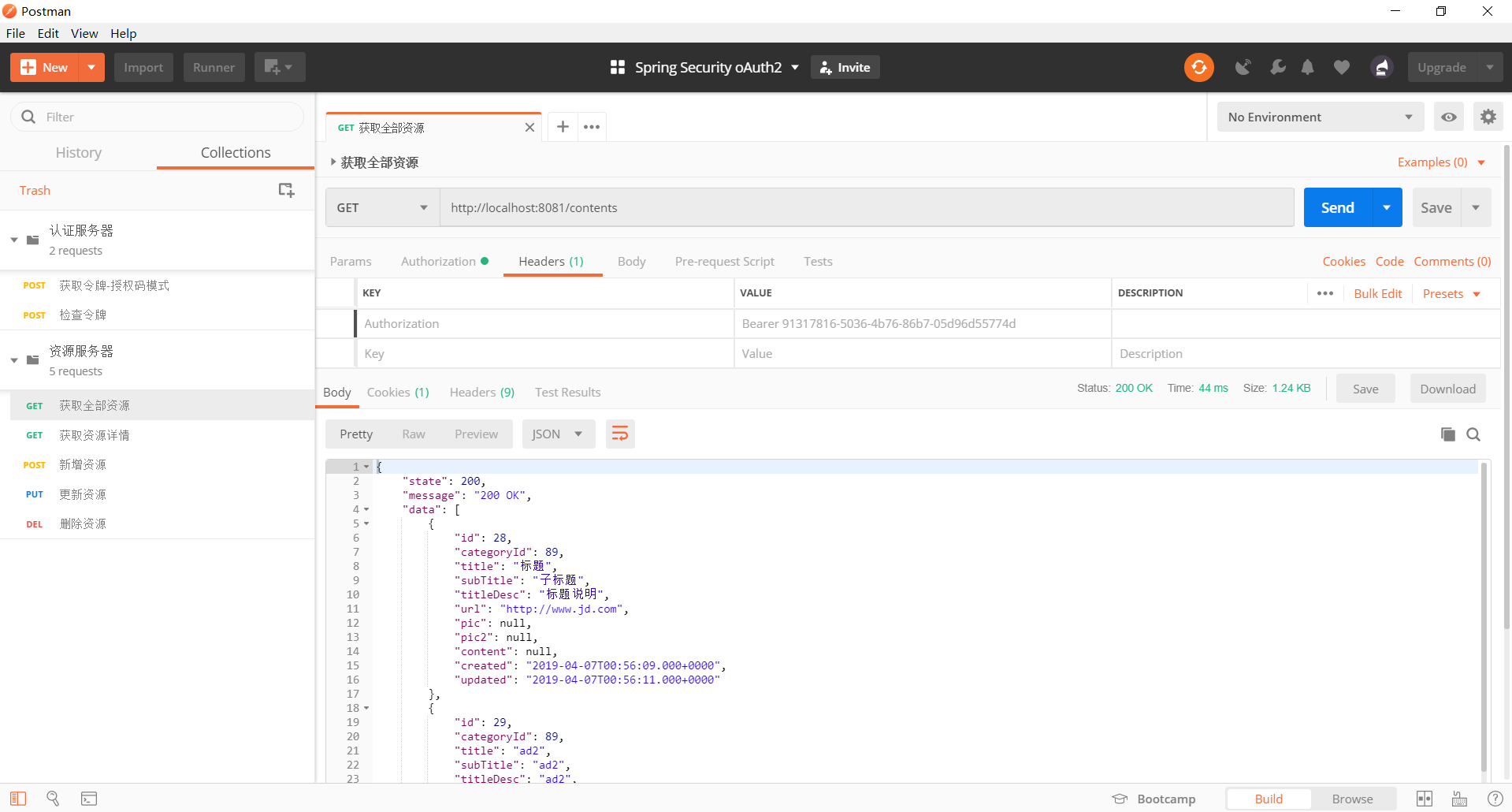

使用 Headers 方式，通过 CURL 或是 Postman 请求

```
    curl --location --request GET "http://localhost:8081/contents" --header "Content-Type: application/json" --header "Authorization: Bearer yourAccessToken"
```

![](/img/20190407033854.png)
